Sampling spent catalytic converter ceramic material

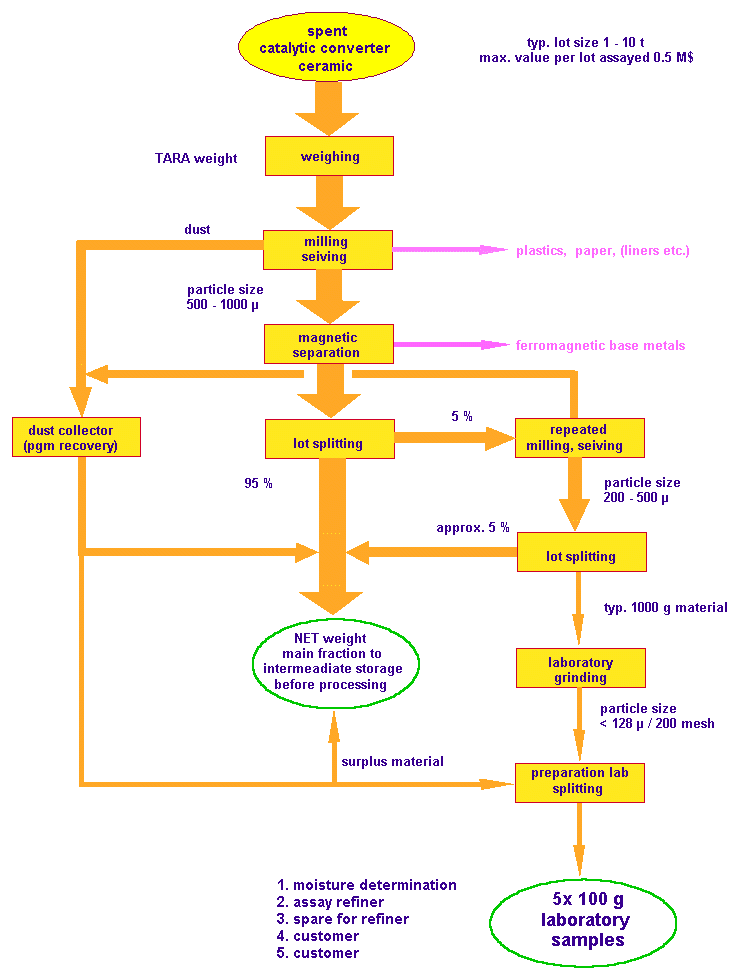

proposed schematics for the sampling procedure

please keep in mind
fair prices for your ceramic are accomplished by correct sampling only

waste material is free of platinum group metals normally
the weight of lines and arrows is an indication for relative solids mass flows rates involved
(on a logarithmic scale)
